Buyer takeaway: solar farm medium voltage cable should be planned by collection block, inverter station, route length and grid connection schedule.
Utility-scale solar projects need organized MV cable routes between inverter stations, transformers, collection points and substations. Buyers evaluating solar farm medium voltage cable should define operating duty, route condition, approval documents, packing limits and site receiving rules before comparing cable prices.
Who Usually Specifies This Cable
This guide fits solar EPC contractors, project owners and procurement teams. It is not a DC string cable selection article.
Application Scenarios
Applications include inverter station feeders, MV collection routes, transformer feeders, substation connections and auxiliary power.
Specification Points to Confirm
| Item | Define | Reason |
| Block | Inverter/array area | Delivery |
| Voltage | MV grade | Standard |
| Route | Burial/duct/tray | Protection |
| Environment | UV/water/heat | Sheath |
| Documents | Reports/marks | Handover |
Route Options and Buyer Tradeoffs
| Route | Cable concern | Buyer note |
| Inverter station | Load and heat | Sizing |
| Collection route | Length and joints | Drum planning |
| Substation | Testing | Reports |
Approval Focus Table
| Reviewer | Focus | Document |
| EPC | Block schedule | Cable list |
| Owner | Reliability | Specification |
| Inspector | Testing | Reports |
Materials, Structure and Workmanship
JINCHUAN can quote solar MV cable packages when buyers provide block layout, voltage, route length and delivery sequence.
Inspection and Document Records
Routine tests, cable marks, packing photos and block-based drum allocation are important for solar project handover.
Cost Risks Buyers Should Clarify
Treating the project as one long cable list can create wrong drum allocation and extra joints. A clear solar farm medium voltage cable specification helps JINCHUAN quote the intended construction, instead of assuming route protection, testing scope or documentation level.
How Buyers Usually Compare Options
Separate inverter blocks, collection circuits and grid connection routes before finalizing cable order quantities.
Quotation Boundary to Confirm
For overseas projects, the quotation boundary should state whether the offer includes cable only, routine test reports, owner-requested certificates, packing photos, drum marks, export packing and phased delivery. When solar farm medium voltage cable is reviewed across several suppliers, this boundary prevents a low price from hiding missing documents, short drum planning or weaker protection.
Questions to Confirm Before Approval
Before approval, ask who will review the datasheet, which standard applies, whether the route is indoor, outdoor, underground, tray, duct or wet area, and whether fire, corrosion, heat or mechanical exposure changes the cable requirement. These questions make solar farm medium voltage cable easier to approve and easier to inspect after production.
Delivery and Site Handling Notes
Mark drums by solar block or route number so installation teams receive the correct cable at the right area.
Common Procurement Mistakes to Avoid
Do not ignore spare length, route changes or block delivery sequence.
Project Review Notes
Before releasing a purchase order for solar farm medium voltage cable, engineering, procurement and site teams should review solar block, voltage and size, route length, installation method together. A shared review reduces disputes caused by different assumptions about route conditions, testing, packing, lead time and owner approval.
How to Compare Supplier Offers
Put every supplier offer for solar farm medium voltage cable into the same comparison sheet. Include conductor material, voltage grade, insulation, sheath, armor or screen, standard, inspection documents, drum length, packing method and delivery term. If two offers do not include the same scope, the cheaper unit price may not be the cheaper project cost.
Site Acceptance and Long-Term Maintenance
After delivery, compare drum marks, packing list, cable type, length and visible condition before installation begins. For solar farm medium voltage cable, this protects the project from wrong-drum installation, missing records and avoidable rework. Maintenance teams should keep datasheets, test reports and drum records for future expansion, replacement or troubleshooting.
Receiving Checkpoint
At receiving, record photos of labels, cable ends, drum condition and document envelopes. These small records make later claims, replacement discussions and site coordination much easier.
RFQ Checklist
- Solar block
- Voltage and size
- Route length
- Installation method
- Outdoor exposure
- Drum planning
- Test reports
- Delivery phase
JINCHUAN Buyer Support
Buyers can review JINCHUAN power cable products and compare related guidance in the battery energy storage power cable guide. When the RFQ includes route, standard, size, quantity, packing and document requirements, JINCHUAN can prepare a more reliable technical and commercial response.
Authority Reference
For MV cable construction, buyers may reference IEC 60502; conductor construction can reference IEC 60228.
Who Usually Specifies This Cable
Typical reviewers include EPC buyers, plant owners, engineering consultants, project procurement teams and maintenance teams. Buyers who only need a stock cable should confirm whether a project-specific review is necessary before requesting a full quotation.
Specification Points to Confirm
| Item | Specification focus |
| Voltage | Confirm project voltage grade before supplier comparison |
| Conductor | Copper or aluminum according to the approved cable schedule |
| Insulation | XLPE or project-approved equivalent |
| Protection | Sheath, armor and screen selected by route exposure |
| Documents | Datasheet, routine test report, packing list and drum marks |

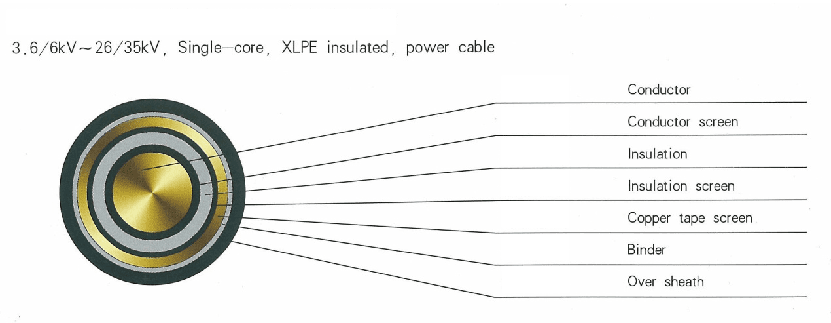

Materials and Components
Buyers should confirm conductor material, insulation type, sheath, armor, screen, flame requirement and packing method before price comparison. JINCHUAN Cable can review these items when the buyer shares route notes, load lists and owner documentation needs.
Inspection and Document Records
Useful quality evidence includes routine test reports, cable identity, drum marks, packing photos, certificates required by the owner and consistency with the approved cable schedule.
| QC point | What to verify | Why it matters |
| Before PO | Approved cable schedule | Prevents wrong scope |
| Before shipment | Routine test report | Supports acceptance |
| Receiving | Drum mark and condition | Avoids wrong-drum pulling |
| Handover | Route and cable record | Supports maintenance |
Delivery Planning and Site Sequence
Lead time should be discussed with drum length, packing limits, destination, inspection needs and site installation sequence. This keeps procurement aligned with commissioning rather than treating delivery as a separate commercial note.
Route Options and Buyer Tradeoffs
| Option | Best for | Buyer risk if unclear |
| Standard feeder | Low-exposure utility routes | May miss site route risk |
| Armored route | Mechanical-risk corridors | Can be over- or under-specified |
| Project-specific schedule | EPC and owner-accepted cable packages | Needs complete route and document inputs |
Cost Risks Buyers Should Clarify
The real cost of solar farm medium voltage cable includes technical clarification time, document gaps, unsuitable drum lengths, delayed receiving checks and route changes after purchase order approval. A lower unit price is not useful if the quotation excludes required test reports, export packing, owner certificates, drum marks or delivery phasing.
Project-Specific Schedule Review
Project teams can request schedule-based review for solar farm medium voltage cable, including voltage, size, route, packing, drum length, destination, labeling and document requirements. JINCHUAN Cable should be evaluated on the whole project boundary rather than a single line item.
Standards and Authority References
Power cable construction may reference IEC 60502, conductor construction may reference IEC 60228, and field testing context may reference IEEE 400. These references help engineering, purchasing and inspection teams use a shared technical vocabulary.
FAQ
Is this the same as solar DC cable?
No, this guide focuses on MV power cable for collection and grid routes.
Why block planning matters?
It improves delivery and installation control.
Can JINCHUAN quote solar MV cable?
Yes, with layout and route details.
Does outdoor exposure matter?
Yes, sheath and protection should be reviewed.
Should drum length be planned?
Yes, it can reduce joints.
What documents are needed?
Datasheets, test reports and packing records.
Can one cable type fit all routes?
Not always.
What is the biggest risk?
Poor route and drum planning.
Should BESS routes be separated?
Yes, if the project includes storage.
What should the RFQ say?
State solar farm medium voltage cable with block, route, voltage and documents.
