In normal service a protective conductor carries nothing at all. The current flows in the phases, the equipment hums, and the earth path sits quietly waiting.
Then a fault occurs, and for a fraction of a second that quiet core becomes the most important conductor in the installation. If it is continuous and of adequate cross section, the device operates and the fault is cleared. If it is not, the fault persists.
The gap between those two outcomes is settled long before the fault, usually in a specification sentence that was copied from a previous project.

The Core That Carries the Fault
A protective conductor provides the return path for fault current so that a protective device sees enough current to operate quickly. It also holds exposed metalwork at or near earth potential while the fault exists.
Those two duties are linked but not identical. One concerns how quickly the device operates, and the other concerns what a person touching the enclosure experiences during that time.
Both depend on the impedance of the path between the fault and the source, which is why the conductor, its connections and the earthing arrangement at both ends are considered together.
A conductor that is adequate in cross section and poorly connected at one termination still fails, and that failure is usually found by testing rather than by inspection.
A protective conductor carries fault current, not load current, which is why it is often specified by habit rather than by calculation.
What the Protective Conductor Has to Do
Five duties follow from the fault current it is expected to carry.
Carry the fault current
The cross section has to withstand the current for the time the device takes to operate, not for a steady condition.
Keep the touch voltage low
During the fault, metalwork connected to the conductor has to stay at a potential that limits what a person would experience.
Stay continuous
Every joint, gland, lug and enclosure connection is part of the path, and a single loose connection defeats the design.
Work with the device
The protection has to operate within the time the cable and the conductor can tolerate, which links sizing to protection settings.
Remain identifiable
The conductor has to be identifiable throughout the installation so that later work does not disturb it by accident.
Earth continuity is the property that makes the protection work, and it depends on every connection along the path rather than on the cable core alone.
Where the Earth Path Comes From
Four arrangements are common, and they place different demands on a cable installation.
| Arrangement | Earth path | Points to check |
|---|---|---|
| Dedicated core in the cable | A separate conductor running the length | Core size, terminations at each end, identification |
| Cable armour used as the path | The metallic armour and the glands | Gland contact, continuity across joints, corrosion protection |
| Metallic screen or sheath | The screen or sheath of the cable | Bonding at each end, continuity across joints |
| Separate conductor along the route | An external conductor laid with the cable | Mechanical protection, separation, joints and identification |
The last option is legitimate and the easiest to damage, which is why its protection matters as much as its size.
Cable armour is frequently used as the earth path, and that choice brings its own requirements for the terminations at each end.
What Habit Gets Wrong
Protective conductors are more often inherited from a previous project than designed for the present one.
- A reduced fourth core carried over from an earlier specification with a different fault level.
- Armour relied upon as the earth path without checking that the glands make and keep contact.
- A separate earth conductor laid without protection where it crosses a traffic route.
- Continuity assumed across a joint that has been remade by a different contractor.
- Identification lost where a conductor passes through an enclosure or a wall.
Each of these is invisible in normal operation and decisive during a fault.
The fourth core in a four core cable exists for a purpose, and reducing it to save cost changes what the protection can rely on.
What Changes the Answer
Four changes invalidate an earth path that was previously adequate.
| Change | Effect on the path | What to verify |
|---|---|---|
| Higher fault level at the source | More current through the same conductor | Withstand of the conductor and the device time |
| Longer feeder | Higher impedance, lower fault current | Whether the device still operates fast enough |
| Replacement joints or terminations | New connections in the path | Continuity and tightness after the work |
| Corrosion or mechanical damage | Increased resistance or a break | Condition of glands, bonds and buried sections |
The second row is the counter intuitive one: a longer route can make protection slower while making the fault current smaller.
Fault loop checks confirm that the path is continuous and of low enough impedance for the device to operate within the required time.
A Gland That Was Tight Enough to Look Right
Situation: An industrial installation had used the cable armour as the earth path for a group of motor feeders, with continuity verified at commissioning.
Finding: Several years later, a fault on one feeder failed to clear quickly. Investigation found that the armouring at one gland had corroded where moisture had collected in the enclosure, and the contact resistance across that termination had risen substantially.
Decision: All glands in the group were inspected, the affected enclosure was resealed and drained, and a separate protective conductor was added to each feeder as the permanent arrangement.
Result: The protection operated correctly after the change. The original design had not been wrong, and its condition had simply not been part of the maintenance routine.
Armour, Screen and Continuity
Using the armour as the protective conductor is common practice in many installations and is efficient when the details are respected. The gland has to make reliable contact with the armour, and the enclosure has to maintain that contact over the life of the installation.
Where cables pass joints, the continuity of the earth path is part of the joint, not an afterthought. A joint that restores the conductors and not the earthing arrangement has left the circuit half finished.
Screens and sheaths used as earth paths behave similarly, and they bring their own requirements for bonding at the ends and for the treatment of any sheath voltage.
The practical question for every installation is whether the earth path survives the water, the corrosion and the maintenance that the route will actually present.
Before Energisation
Four checks on the earth path belong in the commissioning sequence.
Continuity end to end
Measured at the far end of the circuit, including any joint, rather than assumed from the drawing.
Correct terminations
Lugs, glands and bonds fitted correctly, with the torque values recorded.
Condition of the enclosure
Water ingress and corrosion at glands are the most common causes of a slow deterioration in the path.
Identification in place
The conductor marked and recorded so that later work knows what it is looking at.
Testing and Records
A small set of records keeps the earth path credible for the life of the installation.
- Continuity and fault loop results, with the instrument used and its calibration date.
- Whether the path uses a dedicated core, the armour, the screen or a separate conductor.
- Termination types and torque values at both ends of each circuit.
- The fault level the design assumed, since a network change affects the answer.
- Any alteration to glands, bonds or enclosures, with the date and the reason.
Together these let a later engineer confirm the arrangement instead of re-deriving it.
What the Supplier Can Confirm
The cable manufacturer can state the cross section of the earth core offered, the construction of the armour and the material of the screen or sheath. Those are the physical facts the earth path depends on.
The manufacturer cannot decide the fault level, select the protective device or set the time the device must operate in. Those belong to the design of the installation.
Where the arrangement is settled before the order, the cable arrives with a construction that suits the chosen earth path, whether that is a full size core, a reduced core, the armour or the screen.
Where it is settled afterwards, the installation is usually left relying on armour whose gland details were never part of the design conversation.
RFQ Inputs for the Earth Path
These details let the conductor inside the cable match the earth path the installation intends to use.
- the earth path proposed for each circuit, including any use of armour
- the fault level and the operating time to be coordinated with
- the cross section required for the protective conductor
- the armour type and material where it forms part of the path
- the gland and termination types that will make the connections
- the identification and labelling required along the route
- the continuity and fault loop tests planned at commissioning
- the records the owner expects to hold after handover
Technical references such as IEC 60502, IEC 60228 and IEC 60332 can align cable construction and test terminology. The approved project specification, applicable local rules and qualified design authority still govern the final system decision.
JINCHUAN Cable Support for protective conductors and cable earthing

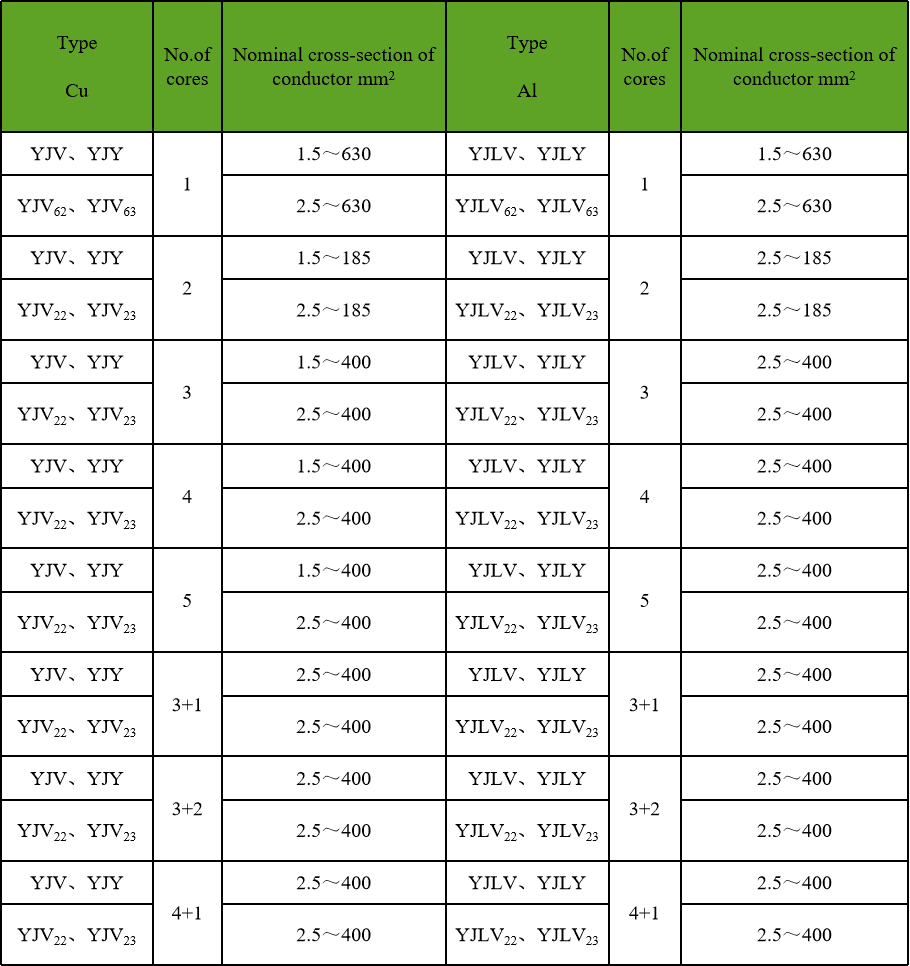

JINCHUAN Cable supplies cable with the earth core cross section and armour construction an earth path requires, and can confirm the screen and sheath materials available.
Review the cable range and the manufacturing profile, then settle the earth path before the construction is ordered.
Decide the earth path before ordering the cable, because the choice changes what is inside it and how it must be terminated.
FAQ
What is a protective conductor?
It is the conductor that carries fault current and holds exposed metalwork near earth potential, so that protection operates quickly during a fault.
Is it the same as an earth wire?
It serves the same purpose. The term protective conductor describes its function in the installation rather than a particular product.
Can cable armour be used as the earth path?
Yes, where the glands make and keep reliable contact with the armour, and where continuity is maintained across every joint and enclosure.
Why is a reduced fourth core a risk?
Because it may have been chosen for a different fault level. If the fault level or the route has changed since, the conductor may no longer be adequate.
How is the size determined?
From the fault current and the time the device takes to clear it, together with the requirement to limit touch voltage during the fault.
What is a fault loop check?
It confirms that the path is continuous and of low enough impedance for the protective device to operate in the required time.
Does a longer cable make things worse?
It raises the impedance, which reduces fault current and can slow the device. That is the opposite of what many people expect.
How does corrosion affect it?
Corrosion at a gland or bond raises resistance in the path, and a fault that used to clear quickly may not.
What should be recorded?
The arrangement used, continuity and fault loop results, termination types and torques, the assumed fault level, and any later alteration.
